FBG Pressure Sensor

The pressure sensor is designed to measure fluid pressure or levels.
There is double FBG inside the stainless steel housing. One FBG is used to measure the pressure another FBG is used to monitor the temperature. So it is temperature compensated.   For multi-point pressure detection, such as inside a pipeline, multiple pressure sensors can be cascaded as a sensing array for field installation. We can customize such a field installation requirement as requested.

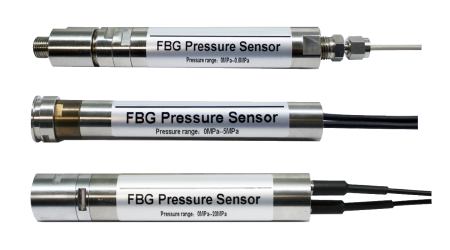

Different mounting method is available

Features

Center wavelength
Pressure range
Accuracy
Dual wavelength design
With temperature compensation
Dimension
Material
Pigtail
Working temperature range
Any wavelength between 1490 to 1615nm
0.5-30Mpa
0.25%


Dia. 26*125mm (custom size available)
All 304 S.S.
One pigtail (or two pigtail for cascaded purpose)
-20 to 85C  ( option up to max 300C)






Application

  • 1

    Strain measurement for civil structure,steel and cement structure

  • 2

    Continuous monitoring of structural health of ships and aircraft, building, bridge, tunnel etc

  • 3

    Risk and damage assessment for bridges,road and dams in earthquake zone

  • 4

    Down-hole oil pressure and temperature sensing

  • 5

    Security monitoring of motion
